Galvanized Corrugated Sheet

Galvanized Corrugated Sheet
Corrugated sheet is a lightweight roofing sheet made of hot-dip galvanized steel coils, which are cold-bent and rolled into continuous waves or trapezoidal ribs. The zinc layer is 60-275 g/m², the thickness is 0.15-0.8 mm, the effective width is 600-1050 mm, and the length can be customized. The corrugated structure enhances strength and drainage, and has the advantages of corrosion resistance, fire resistance, earthquake resistance, easy installation, and recyclability. It can be pre-painted in RAL colors. It is suitable for industrial plants, warehouses, agricultural greenhouses, temporary houses and residential sloping roofs, and is a fast and economical alternative to traditional tiles.
Contact Us
Contact Us

Product Parameters

ProductGalvanized corrugated sheet roofing sheet, cheap roofing material Color coated corrugated sheet
Base materialGalvanized steel sheet
Material GradeSGCC/DX51D+Z
Thickness0.12-1.50mm
Width750-1250mm(or as per your requirement)
ToleranceThickness: +/-0.02mm
Width:+/-2mm
Zinc-coating40g/m2-275g/m2
TechniqueCold rolled—>hot dipped galvanizing—>corrugated steel sheet
Terms1.Raw material width 762mm, after corrugated width 665mm: 9 waves.
2.Raw material width 914mm ,after corrugated width 800mm:11 waves.
3.Raw material width 1000mm, after corrugated 890mm or 900mm :12 or 14 waves.
4.as customer requirement
FeatureRoofing Steel Sheet have excellent performance of decoration,corrosion resistance etc.
Export packageWaterproof paper, galvanized steel covered and steel strip package
MOQ20 Tons
Delivery TimeNormally within 20-30 days

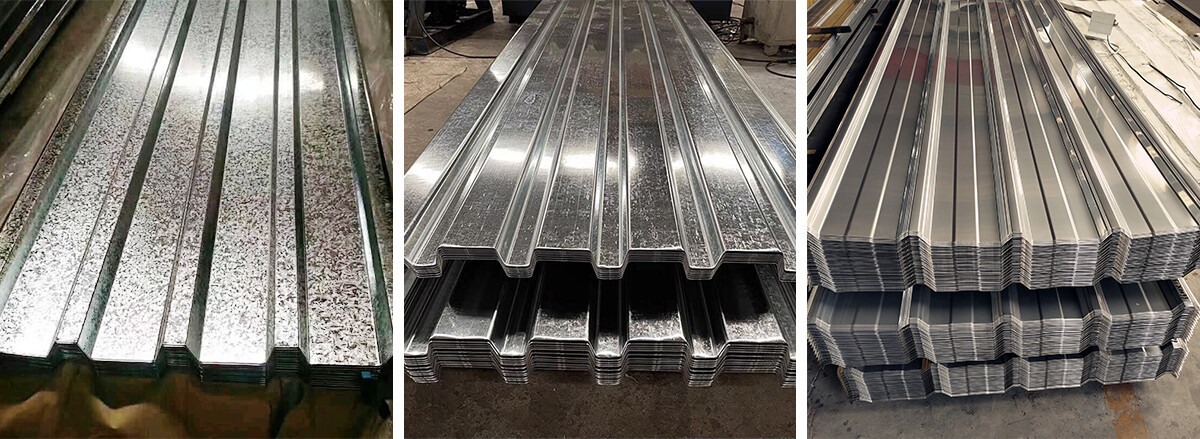

Product Details

瓦楞板 (2)

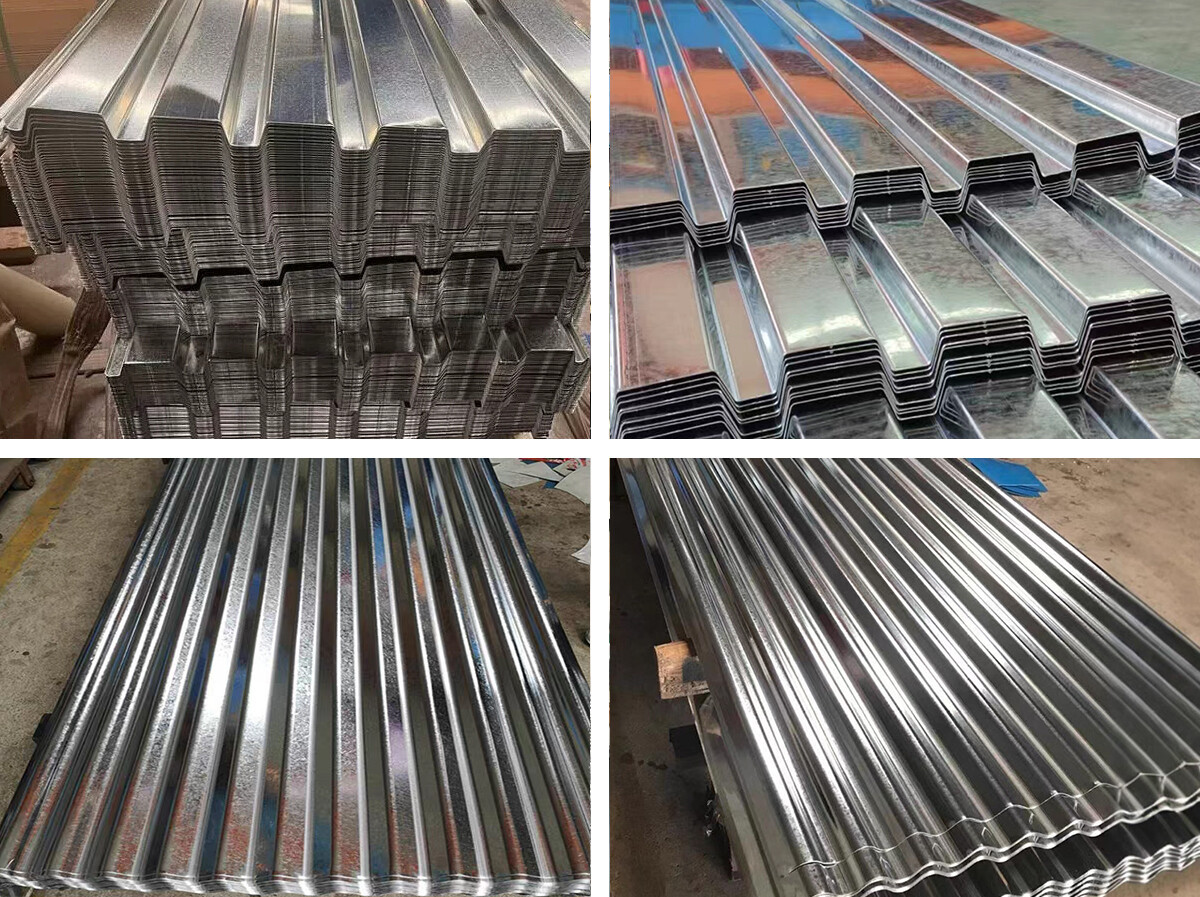

Product photos

瓦楞板 (4)

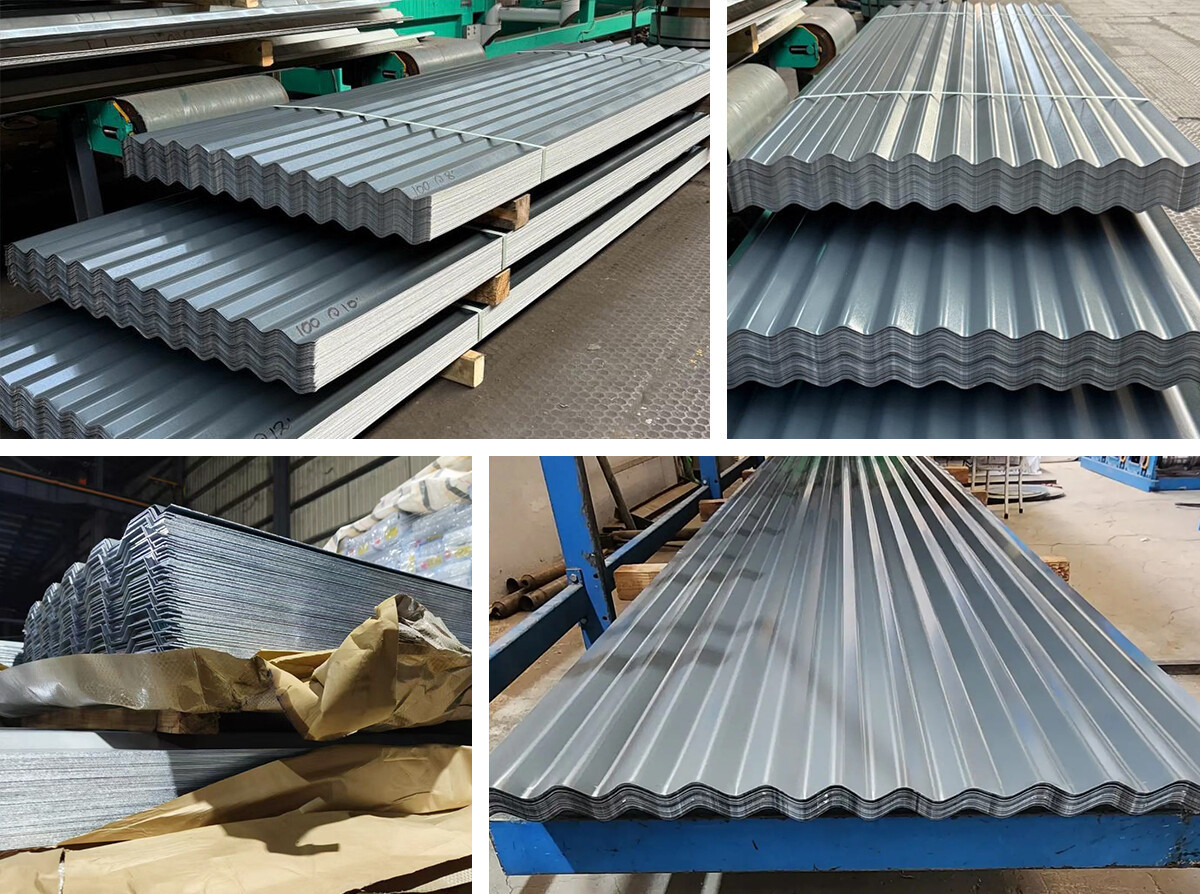

Product Inventory

瓦楞板 (6)

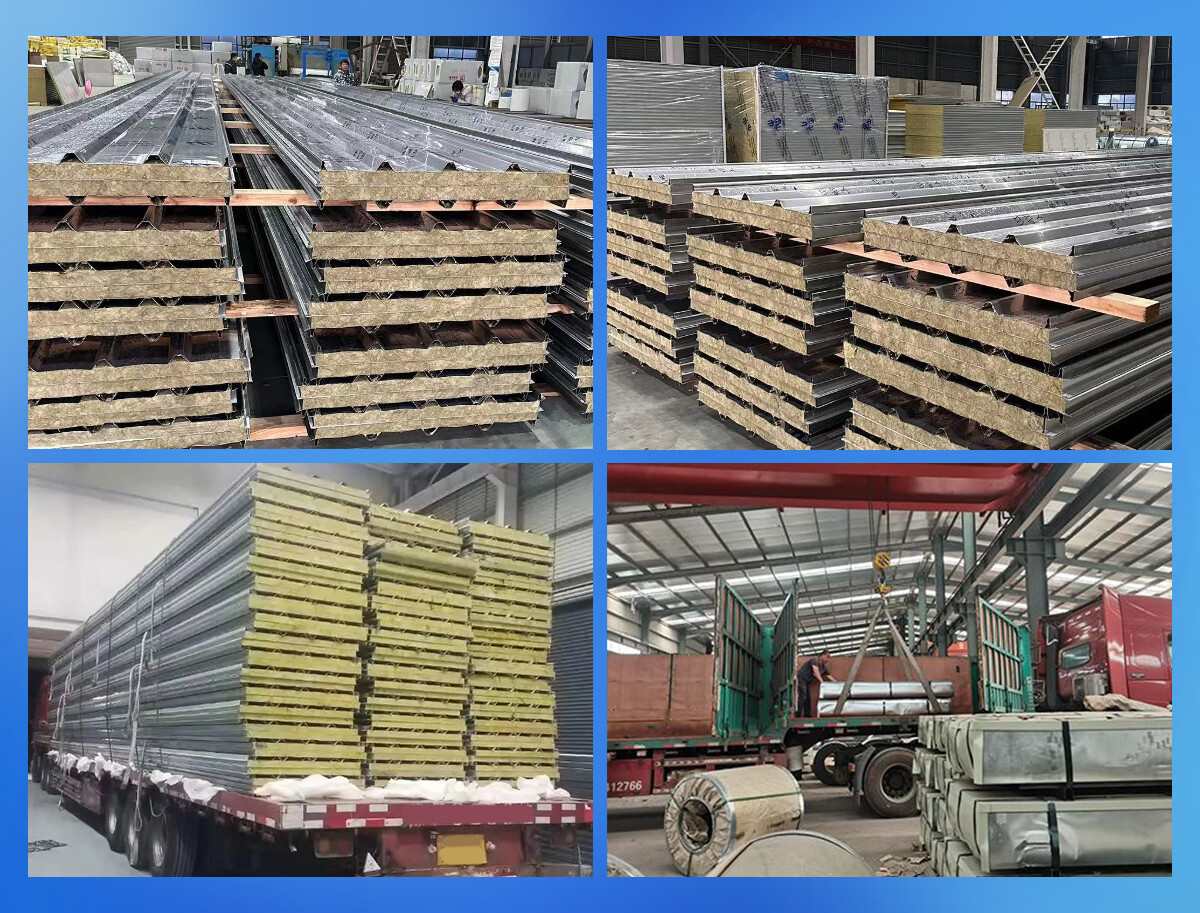

Packaging and transportation

瓦楞板 (8)

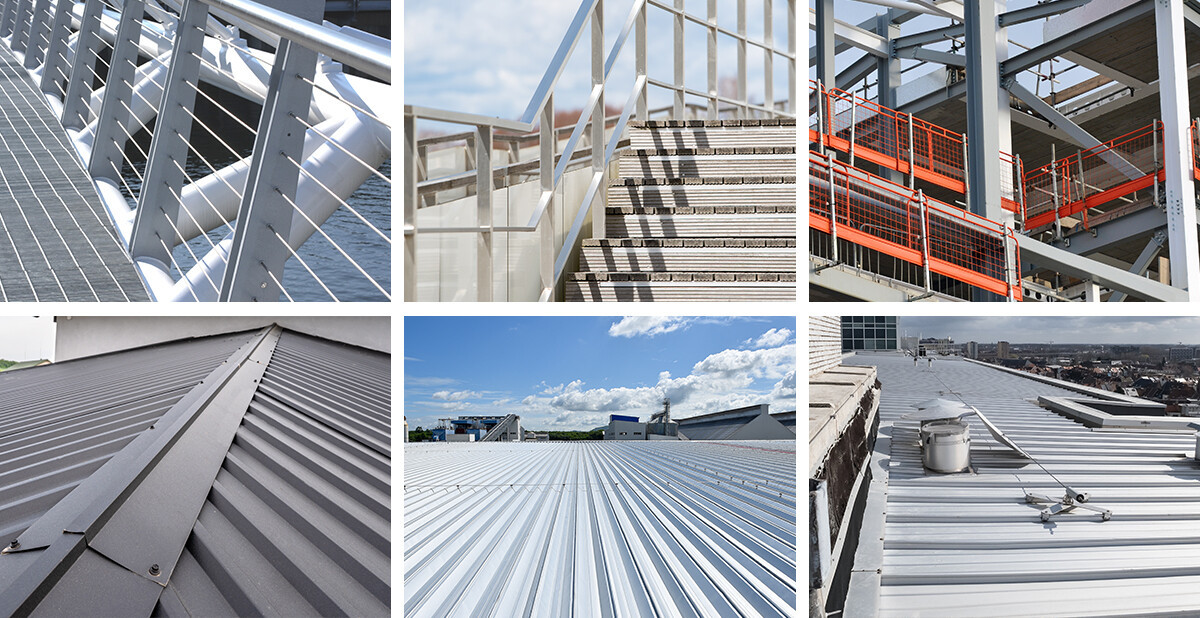

application

瓦楞板 (10)
